Product profile:
|
|
|
|

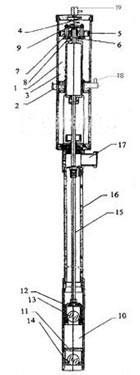

Three-dimensional reference map
|
Main view
|
Back View
|
|
HAO SINOSTARS Pneumatic pulp pump (plunger) JQB series |
Usage:
1, first of all, should ensure that pneumatic tubing (compressed gas supply pipe) to connect comply with the requirement to stabilize the atmospheric pressure to reach 0.5 ~ 1.5MPa range, and pneumatic pipe firmly connected to the pneumatic slurry pump inlet nozzle, the time lubricating oil into the cup, after tightening, the pneumatic pump slurry material guide tube (suction port) to be delivered right into the drums (or other container materials pools) attached.
2, the corrosion-resistant discharge hose connection port connected to the feeding place.
3, pneumatic slurry pump into the valve was closed, and then connected into the gas supply pipe valve connector. When you get started sliding the control valve should be opened and closed repeatedly tested until no abnormal, according to the required slurry flow to open the intake valve to regulate the pneumatic slurry pumps operating frequency, you can operate the work.
Maintenance:
1, Hao Star pneumatic slurry pump during use to prevent the collision cylinder parts to avoid the distortion occurred pneumatic plunger (piston) card, the phenomenon of death, resulting in failure or resulting in serious scrapped.
2, Hao Star Air slurry pump pneumatic plunger (piston) is running more than one million times, according to the process air compressor aspirated water accumulates in the situation should be clear cylinder, coated note 30 # high-quality lubricating oil.
3, Hao Star JQB Pneumatic pulp pump, such as prolonged unused, should be working in a solvent-like cleaning, to prevent the slurry to freeze, blocking the feeding tube and have problems.
Application:
Hao JQB Pneumatic conveying slurry pump can be acid, alkali, salt, oil, beverages, plastic additives, polyester, polymers and other media, particularly as applied to chemicals, petrochemicals, fine chemicals, dyes chemical, environmental protection, water processing, medicine, food and other industries.
Hao JQB Pneumatic pulp pump, also known as pneumatic plug barrel pump (oil drums pump, leather slurry pumps, slurry pumps is expected to play) instead of importing slurry pumps for artificial leather production of wet and dry preparation must not be the lack of transportation equipment and other industrial sectors Tu Taiwan slurry conveyor is designed with explosion-proof, corrosion-resistant, durable, anti-precipitation, energy saving, low noise, small size, light weight, easy operation, good stability, mobile conveyor is located, etc. characteristics.
Performance parameters:
|
Model Specification |
A0.8 |
B1.2 |
C2.8 |
D3.0 |
D3.2 |
|
Operating Temperature(℃) |
-40～40 |
||||
|
Use of air pressure(MPa) |
0.5～1.5 |
||||
|
Transport flow(T/h) |
0.8 |
1.2 |
2.8 |
3 |
3.2 |
|
Output pressure(MPa) |
0.2～2 |
||||
|
Conveying viscosity(CP.S) |
0～80000 |
||||
|
Cylinder Piston stroke(mm) |
60 |
65 |
110 |
110 |
110 |
|
Total length of pump |
1450 |
1450 |
1650 |
1660 |
1660 |
|
Weight(Kg) |
13 |
15 |
18 |
20 |
26 |
|
Notes: Hao Stars JQB type Pneumatic pulp pump is ideal for low, medium and high viscosity medium, dry, wet leather-synthetic leather pulp production line automatic transmission, and other fuel, and other media delivery. Customized for various types of interface and access to pump connection pipe size |
|||||
